400ml 2:1 disposable adhesive cartridge two-component plastic epoxy glue injection cartridge
Product Introduction
| Item | Value |
| Product Name | 400ml 2:1 cartridges |
| Brand Name | Eestron |
| Cartridge Capacity | 400ml |
| Mixing Ratio | 2 : 1 |
| Material | PP/PE or to be customized |

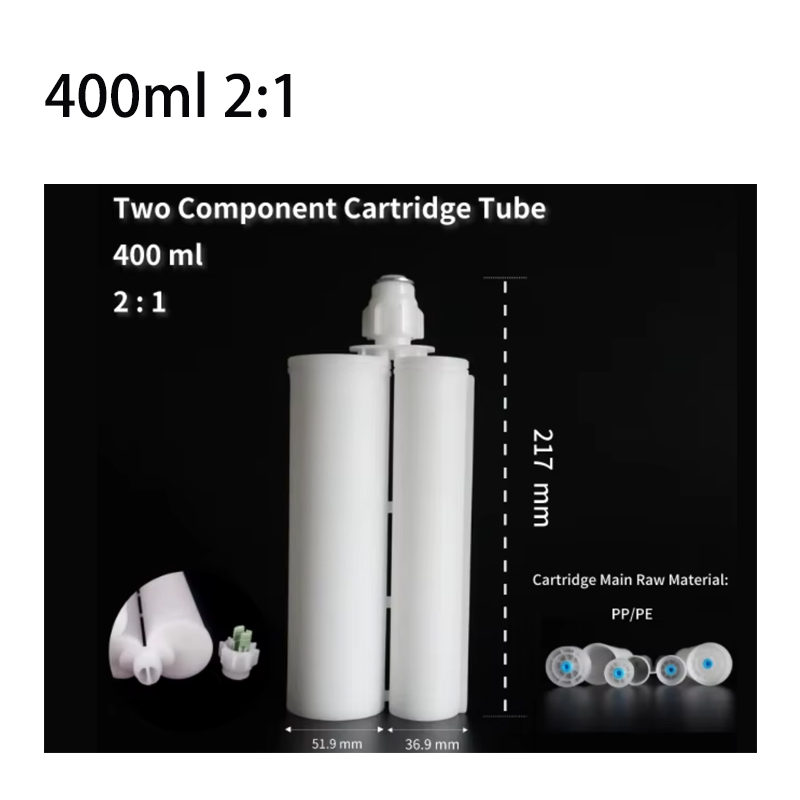

| Total length of cartridge | 217.3mm |
| Cartridge Wall Thickness | 2.0mm & 3.0mm |
| Diameter | A Tube 51.9mm & B Tube 36.9mm |
| Feature | disposable,excellent sealing |
| Usage | packing Adhesives, Epoxies, Greases, Glue |
| OEM | Allowed |
| Application Area | Construction, Concrete, Industry, Hardware |
| Processing Service | Moulding, Cutting, OEM, ODM, Logo |
| Place of Origin | kunShang China |
| Packaging | Master Carton or to be customized. |
Product Features
Stable Storage of Components: Reliable sealing maintains the chemical properties of the adhesive, ensuring stability over time.
Precise Metering: Advanced technology enables precise capacity ratios of dual components, effectively controlling output ratios for optimal performance.
Ease of Application: Compatible with a wide range of materials and applications, offering flexibility in usage.
Safe and Fast Filling: The proprietary interface of the mixers allows for easy closure and storage of cartridges without adhesive curing. This ensures maximum metering performance and swift application of the glue.
We produce the highest quality cartridges and pistons in the industry. Cartridges and pistons are produced in our own Injection moulding factory, where they are subjected to stringent quality control inspections throughout the entire manufacturing process.
Features and Benefits
• Precision fit between cartridge and piston ensures consistent fluid deposits
• Wiper piston improves fluid control, keeps fluids from dripping and eliminates waste by wiping the cartridge wall clean
• Wide variety of styles and sizes
• Package labels include lot numbers for process control and traceability
Pistons
A piston is inserted into the cartridge after it has been loaded with fluid to ensure uniform dispensing, prevent dripping, and eliminate waste by wiping barrel walls clean as fluid is dispensed. Optimum pistons are molded from high-density polyethylene.
End caps and tip caps
End caps and tip caps provide an airtight seal that allows you to prefill cartridges or seal partially used cartridges between shifts.
Tip caps have a large knurled gripping surface that simplifies attachment, and a vent that prevents air from being introduced into the cartridges during installation. The gripping action of the tip cap is designed to maximize the seal and yet be easily removed by the user. *End caps feature a precision fit and use a convenient push-button to produce a snug, air-tight seal.
