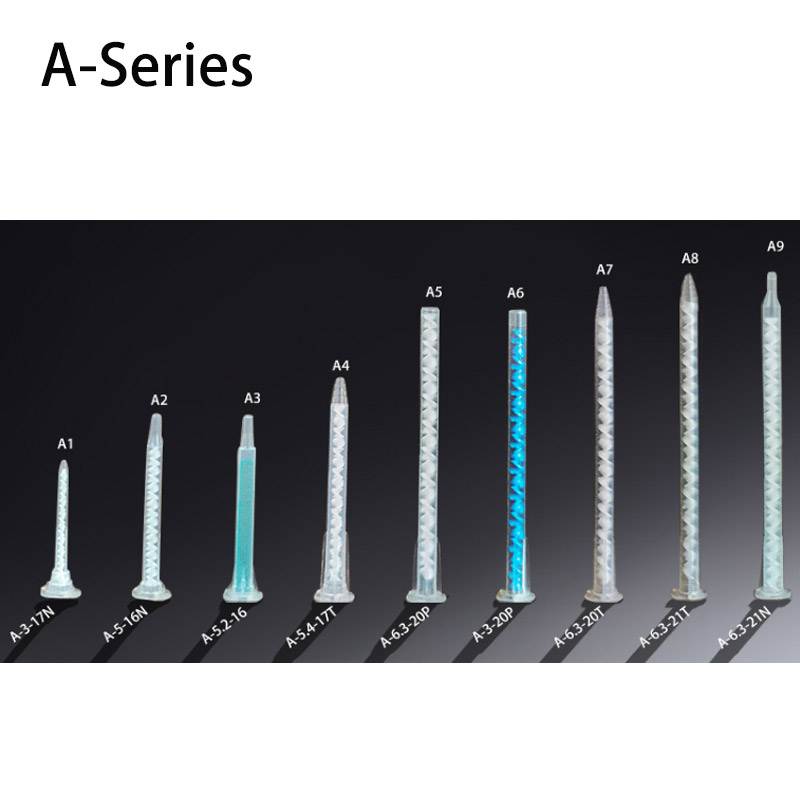

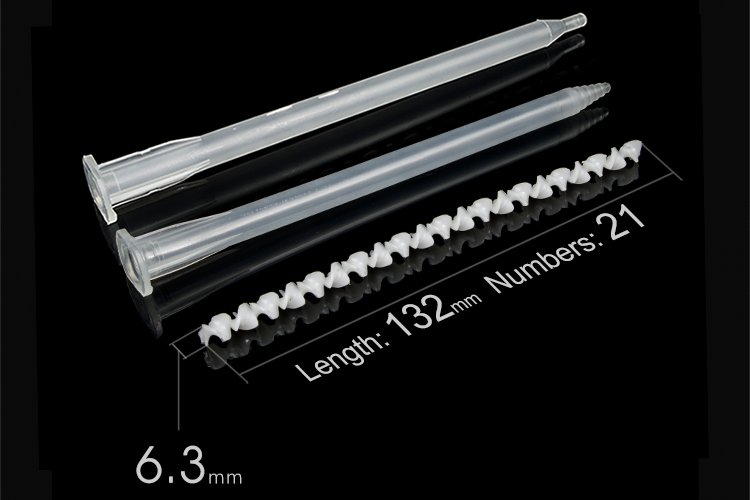

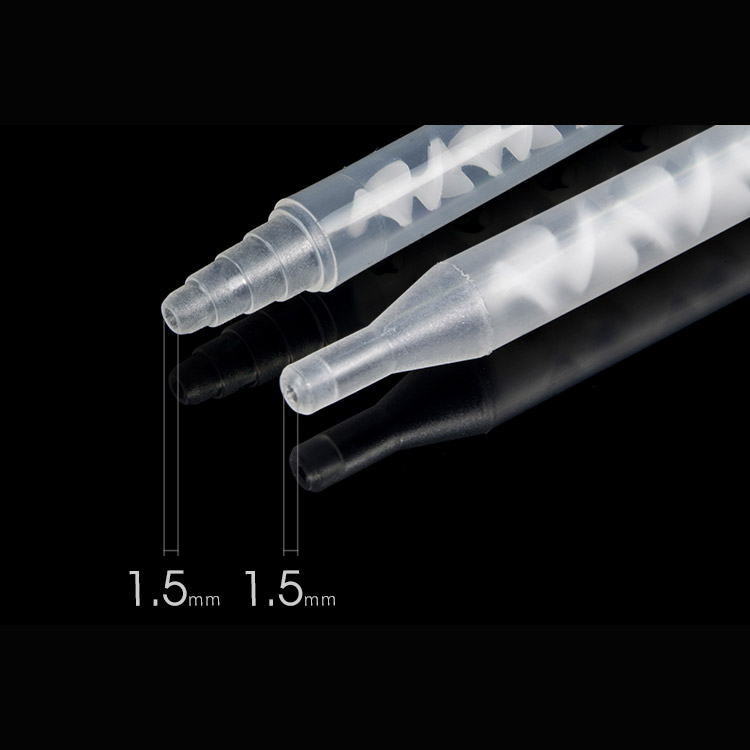

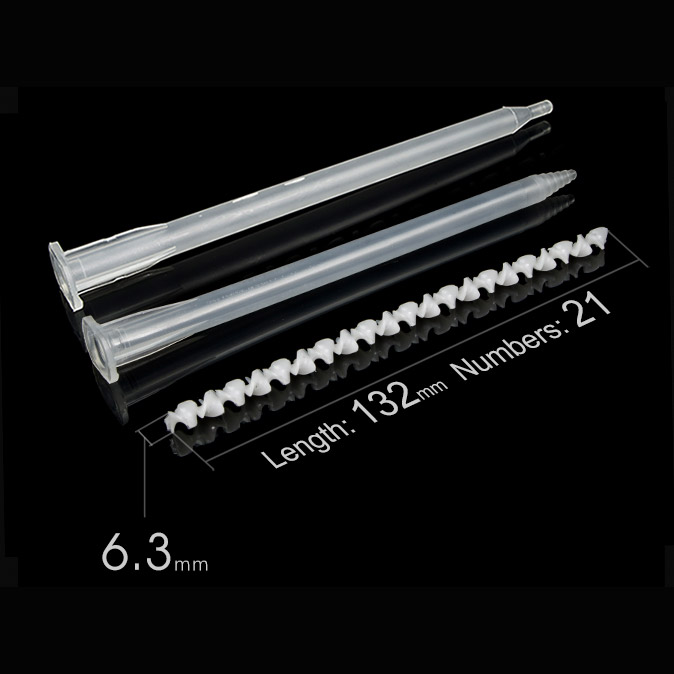

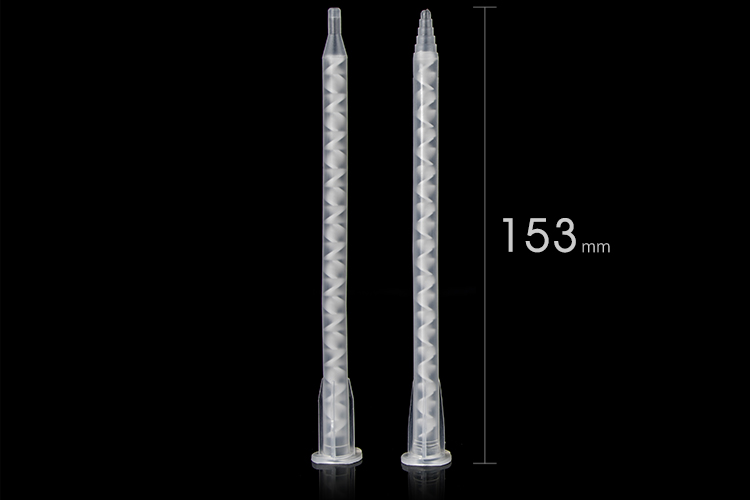

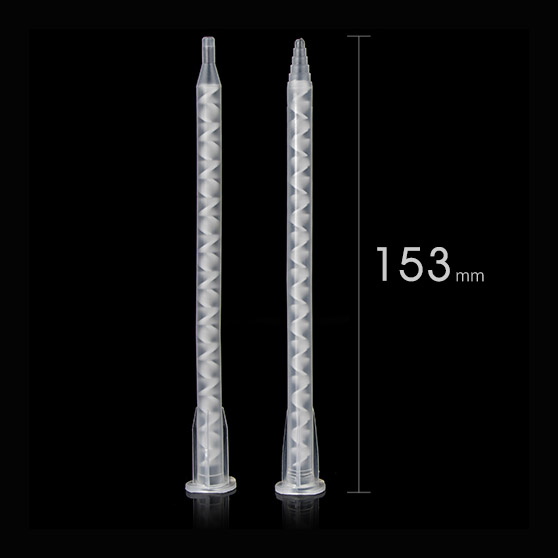

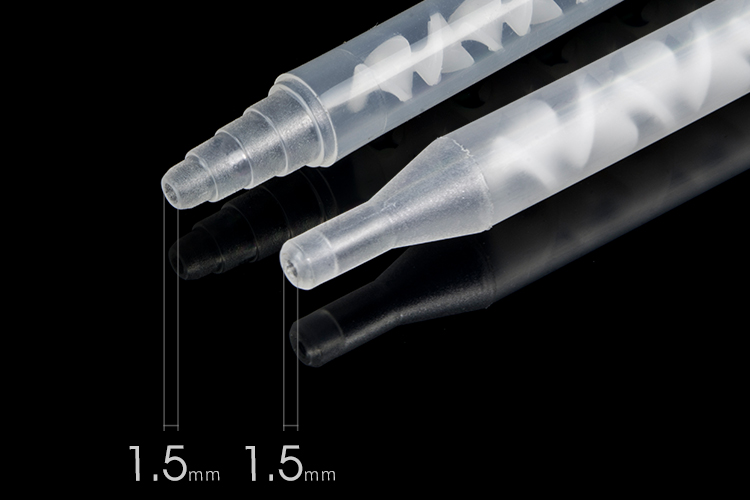

A-6.3-21 Static Mixer Nozzle stepped shaped mixing nozzle for use with resin dispensing gun for twin tube

The A-series mixing tube is the most commonly used product in the production dispensing process, and the card interface is suitable for the 50 series AB glue cylinder,
Commonly used for dispensing valves and dispensing gun heads with appropriate interfaces. The positive and negative spirals inside the mixing tube can easily separate adhesive A and adhesive B Mix evenly. The degree of uniformity in mixing is closely related to the level of specialization in production technology, and the use of mixing tubes is for two-component liquids Body mixing provides a low-cost solution, using static mixing tubes can save labor, reduce waste, and increase efficiency Significantly increase productivity and reduce production costs.

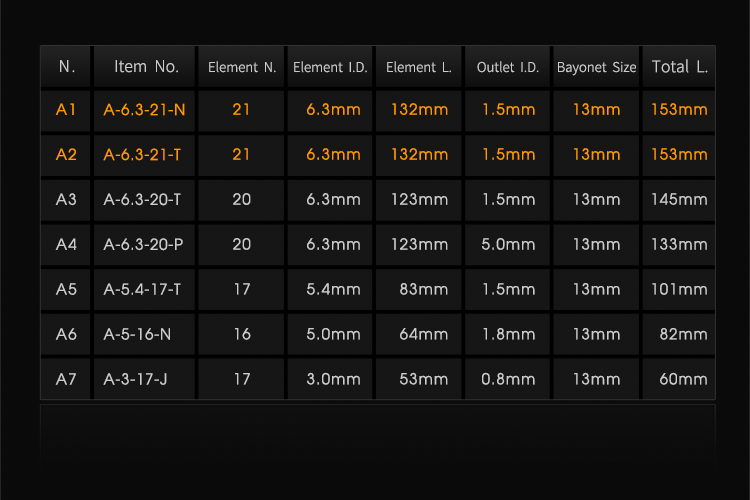

    Specification

    Item Value
    Product Name A-6.3-21 Static Mixer Mixing Tip
    Brand Name Eestron
    Material PP
    Application Mixing AB Glue
    Feature disposable,excellent sealing
    OEM Allowed
    Application Area Construction, Concrete, Industry, Hardware
    Processing Service Moulding, Cutting, OEM, ODM, Logo
    Place of Origin kunShang China
    Packaging Master Carton or to be customized.

    characteristic

    The structure is simple and easy to install.
    No moving parts during operation, low pressure drop, suitable for mixing materials with high viscosity, high corrosiveness, etc. Good mixing effect, able to achieve uniform mixing of materials in a short period of time.
    • A-6
    • A-6
    • A-6
    • A-6
    • A-6

    Function

    Efficiently mix different materials to evenly distribute their components. Promote chemical reactions by thoroughly mixing reactants to improve reaction efficiency and quality. Improve the physical properties of materials, such as uniformity, stability, etc. Realize uniform mixing of materials with different temperatures and concentrations. In some process flows, it plays a role in dispersion, emulsification, etc., optimizing production efficiency.
