What is a Static Mixing Tubes?

In modern industrial production, static mixing tubes serve as core tools in the mixing field, transforming production methods across industries such as construction and electronics.

In terms of appearance, static mixing tubes are mostly long and thin tubes, often made of plastic materials like polypropylene (PP). This material offers both good chemical stability and cost-effectiveness. One end features an interface connected to the adhesive cartridge; the interface type varies based on application scenarios and cartridge specifications. For instance, a square bayonet interface can form a tight connection with specific AB adhesive cartridges. The other end is the outlet for the mixed fluid, whose size can be adjusted to meet practical needs—either by cutting the stepped head to increase the outlet size or attaching a needle to reduce it.

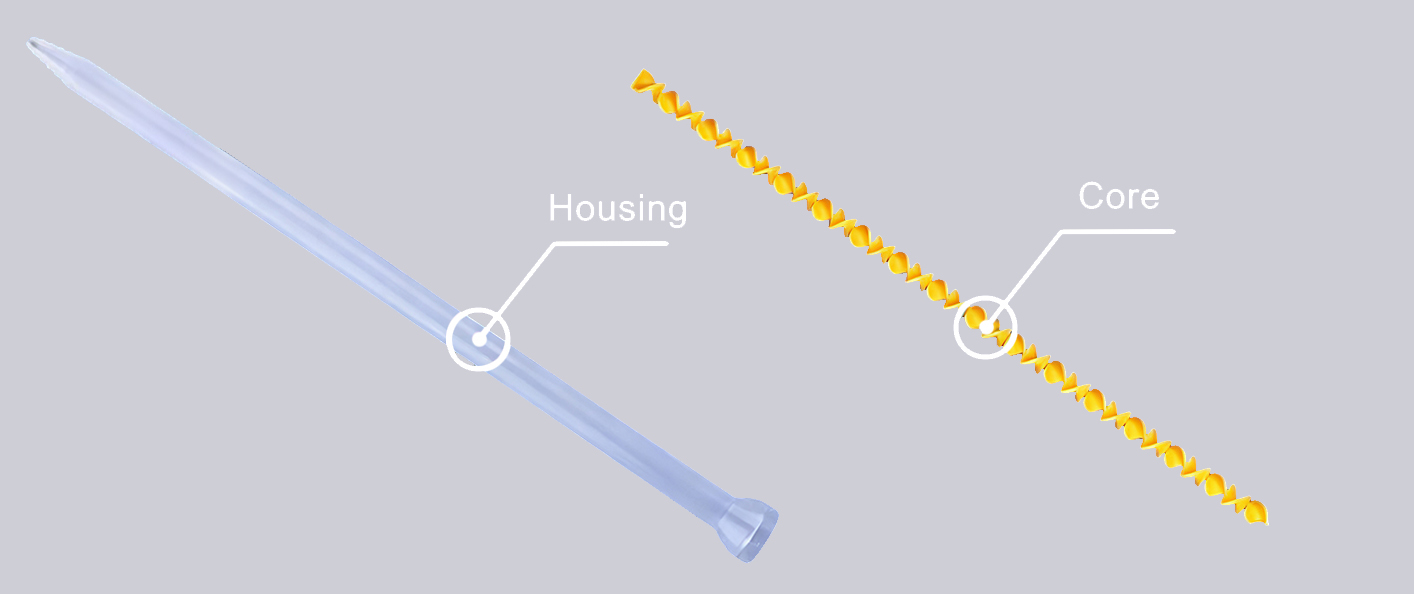

The internal structure is the core that enables efficient mixing of static mixing tubes. Inside the tube, there are a series of carefully designed spiral blades, arranged vertically and closely in sequence. When two or more fluids enter from the cartridge, they are continuously cut, rotated, and recombined as they flow through the spiral blades, ultimately achieving uniform mixing.

Static mixing tubes have a wide range of applications. In electronics production, they are used to mix electronic adhesives, ensuring firm bonding and stable performance of electronic components. In the automotive manufacturing industry, they can mix automotive sealants to guarantee the sealing and waterproofing of vehicles. In the construction industry, they mix construction adhesives to facilitate the firm bonding of building materials. From the micro-manufacturing of electronic chips to the macro-construction of large-scale buildings, they are ubiquitous.

In-depth Analysis of the Working Principle of Ebestron Static Mixing Tubes

Core Principle: Ingenious Application of Fluid Dynamics

The core working principle of Ebestron static mixing tubes lies in the ingenious application of fluid dynamics. When two or more fluids enter the tube simultaneously, the fixed mixing elements play a key role. These elements do not require external mechanical drive; instead, they can alter the fluid’s flow state and guide it to flow along a specific path.

Unlike dynamic mixers that rely on motors to drive stirring blades, static mixing tubes depend entirely on the fluid’s own flow energy. As the fluid passes through the mixing elements, it is cut, rotated, and recombined, ultimately achieving uniform mixing. This method not only simplifies the equipment structure but also reduces energy consumption and maintenance costs.

Key Mechanisms in the Mixing Process

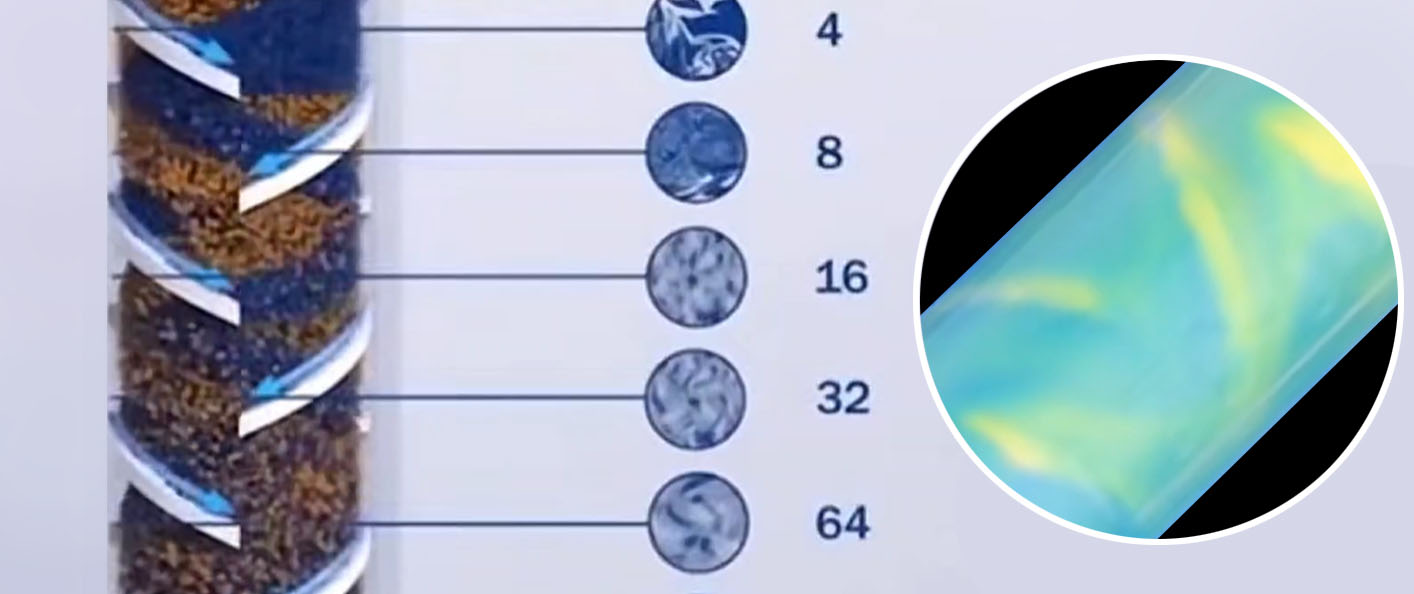

Splitting and Recombination: When the fluid flows through the mixing elements, it is first split into multiple small streams. Taking spiral blades as an example, after two-component fluids flow into the tube from the AB adhesive cartridge, the blades continuously split the fluid into two parts, then four, and then eight—similar to kneading and splitting a piece of dough before recombining the fragments. Each time the fluid passes through a mixing element, it undergoes a cycle of splitting and recombination. After the continuous action of multiple elements, the originally separated fluids become fully intertwined, laying the foundation for subsequent uniform mixing.
Mixing Secrets in Laminar and Turbulent Flow: In the laminar flow state, fluids flow in layers without interfering with each other. Mixing is mainly achieved through the mechanism of "splitting - shifting - re-converging", and the repeated action of mixing elements gradually makes the fluid uniform. In the turbulent flow state, in addition to the above mechanism, the fluid generates intense eddies in the direction of the flow cross-section, which increases the shear force between fluids—just like the vortices in a turbulent river, further splitting the fine components of the fluid and ensuring more thorough mixing. In practical applications, when the fluid flow rate is low, it tends to be in a laminar state with a weak mixing effect; as the flow rate increases and enters a turbulent state, the mixing effect improves significantly.

Key Role of Mixing Elements

The mixing elements inside Ebestron static mixing tubes come in various shapes, such as spiral and serrated. The spiral type is the most common, consisting of a series of left-rotating and right-rotating blades arranged vertically and closely in sequence inside the sleeve. When the fluid passes through, it is continuously cut and rotated, generating intense turbulence to promote mixing. The serrated type exerts strong shear force on the fluid through its sharp serrations, splitting the fluid and accelerating the mixing process.

Different shapes of elements are suitable for different fluids and mixing requirements: low-viscosity fluids (e.g., water-based adhesives) are compatible with spiral elements, which achieve efficient mixing through rotation and splitting; high-viscosity fluids (e.g., epoxy resins) are better matched with serrated elements, which overcome fluid viscosity and ensure uniform mixing using strong shear force. When selecting elements, factors such as fluid viscosity, chemical properties, and mixing effect requirements should be comprehensively considered to maximize the equipment’s performance.

How to Select the Appropriate Ebestron Static Mixing Nozzle

Selection Based on Fluid Properties

Fluid properties are the primary key factors to consider when selecting a static mixing tube, and differences in viscosity, flow rate, and corrosiveness significantly affect the tube’s performance.

Viscosity: High-viscosity fluids (e.g., hot-melt adhesives) have poor fluidity and require products with simple internal mixing element structures and large flow cross-sectional areas—such as the SK-type static mixing tube, which has a large internal space, good flowability, and is not prone to blockage. Low-viscosity fluids (e.g., water-based adhesives) have good fluidity and can be paired with types with complex mixing element structures and strong shear effects (e.g., SV-type), which split the fluid more finely and achieve high-precision mixing.
Flow Rate: For high flow rates, a mixing tube with a large diameter should be selected to avoid uneven mixing caused by excessive pressure or overly fast flow rate. For low flow rates, a small-diameter product can be used to balance mixing efficiency and precision. For example, in an electronic component production line with a high adhesive flow rate, a large-diameter mixing tube is used to ensure stable supply and mixing effect; in small-batch, high-precision experimental scenarios, small-diameter products are used to save materials and costs.
Corrosiveness: If the fluid is corrosive (e.g., chemical reagents), a static mixing tube made of corrosion-resistant materials such as polypropylene (PP) or polytetrafluoroethylene (PTFE) must be selected. PP has good chemical stability, resists corrosion from most acids, alkalis, and salts, and is cost-effective, making it a common choice. PTFE has superior corrosion resistance but higher costs; selection should comprehensively consider the fluid’s corrosiveness and usage costs to ensure the equipment is not corroded and production safety is guaranteed.

Considering Mixing Requirements and Process Conditions

Mixing requirements and process conditions also influence the selection. Different production processes have different requirements for mixing precision and uniformity: in fields with extremely high product quality requirements (e.g., electronic chip packaging), a mixing tube with high mixing precision and the ability to achieve accurate proportional mixing should be selected—its precise internal structure ensures the fluid is uniformly mixed in the required ratio. In scenarios with relatively low uniformity requirements (e.g., mixing of ordinary construction adhesives), products that meet basic needs and have low costs can be selected to reduce production costs.

The continuity of the process and pressure limitations are also critical: for continuous production processes, a static mixing tube that can operate continuously for a long time and has high material and structural stability should be selected. For example, in large-scale automotive component production lines, mixing tubes need to work continuously for long periods and must have good durability. When the process system pressure is low, a product with a small pressure drop should be selected to avoid affecting the normal operation of the system; when the pressure is high, a type with better mixing performance can be chosen based on other factors. For instance, in high-pressure chemical reaction processes, under the premise that the system pressure meets requirements, a static mixing nozzle with a slightly larger pressure drop but better mixing effect can be used.
